How to Automate VIN Marking Processes
Introduction
VIN marking is a legally required and quality-critical step in vehicle manufacturing. Every body-in-white must carry a unique, permanent vehicle identification number that survives painting, assembly, and decades of service. As line speeds increase and material grades become stronger, manual or semi-automatic marking stations struggle to keep pace with production requirements.
Automating VIN marking means replacing manual marking operations with a controlled, repeatable process that can be integrated into an existing production line. For automotive engineers, manufacturing engineers, and production managers, the challenge is not only selecting a marking technology, but also deciding how it will be positioned, triggered, verified, and connected to plant traceability systems.
This guide explains how to automate VIN marking processes step by step. It covers the marking technology used for deep VIN marking on high-strength steel, the hardware and integration options involved, the role of vision guidance and quality verification, and the practical considerations that determine whether an automated VIN marking station performs reliably in mass production.
Product Overview
The KINMARK Deep Laser Marking Machine is designed for deep VIN marking on high-strength materials. It is a laser-based marking system intended for automotive mass production environments, where VIN characters must be marked permanently and remain legible after the painting process.
The system enables permanent VIN deep marking on high-strength steel plates with yield strength exceeding 700 MPa and hot-formed steel plates with strength up to 1500 MPa. On body-in-white, the marking depth can reach more than 0.2 mm.
Beyond the marking head itself, the machine is designed with integration in mind. It provides mounting interfaces for industrial robots or assisted manipulators, and it supports optional vision guidance and traceability modules. This makes it suitable for automated production lines where VIN marking must be synchronized with body conveyance, robot positioning, and plant-level data systems.

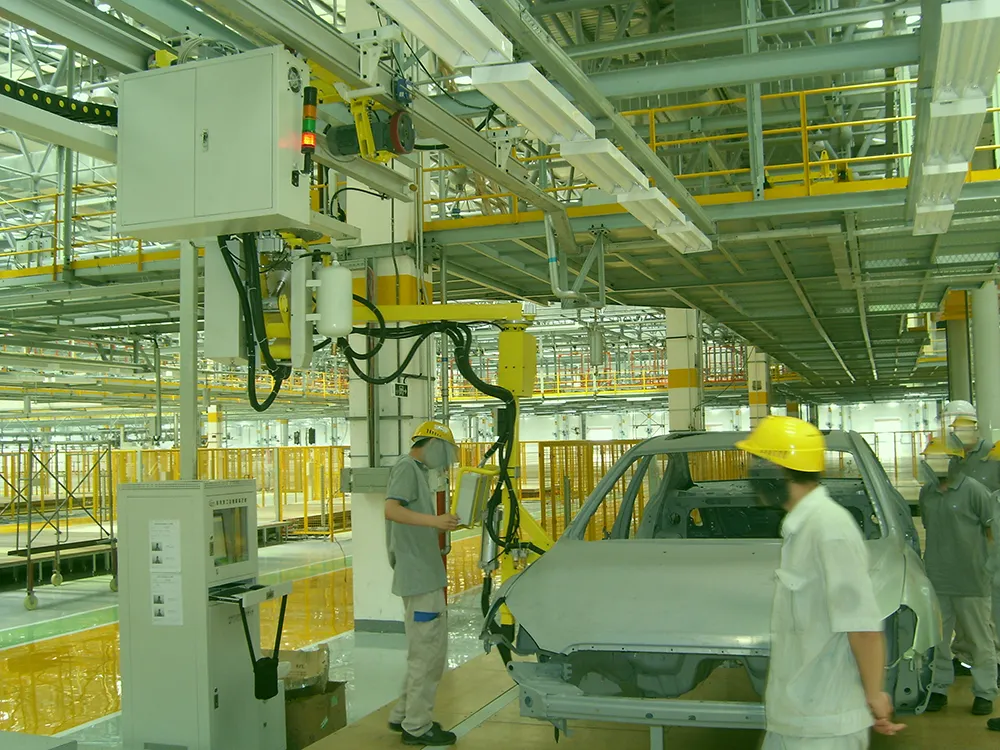

Typical application scenarios include body-in-white VIN marking stations, automated marking cells integrated with robots, and traceability-driven production lines where each marked VIN must be verified and recorded.
Working Principle
Automated VIN marking with a deep laser marking system follows a controlled sequence rather than a single isolated action. Although the exact configuration depends on the line layout, the general working principle can be described in the following stages.
1. Body Positioning
The body-in-white arrives at the marking station through the conveyor system. The body must be positioned within the working envelope of the marking head. When a 3D vision guidance system is used, it performs precise positioning so that the marking location is accurately identified before marking begins.
2. Marking Execution
The laser marking head applies the VIN characters to the designated surface. The process is designed for deep marking, producing a marking depth of at least 0.2 mm on body-in-white. A special marking process is used so that the characters remain clearly rubbable after the painting process.
3. Quality Verification
When the optional 3D laser scanning measurement and OCR recognition systems are installed, the marked characters can be inspected online. This provides verification of marking quality and supports traceability of the marking result.
4. Data Recording
The marking result and related production data can be linked to the plant traceability system, so that each VIN is associated with its production record. The level of data integration depends on the customer's production control architecture.
Note: The sequence above describes the general process flow. The actual configuration, control logic, and interfaces are defined by the production line requirements and the selected system options.
Key Features for Automated VIN Marking
The following features are relevant when planning an automated VIN marking process.
Deep VIN Marking: Permanent VIN deep marking on high-strength steel plates with yield strength exceeding 700 MPa and hot-formed steel plates up to 1500 MPa, with marking depth on body-in-white reaching more than 0.2 mm.
Easy Rubbing: A special marking process ensures clear rubbing results after painting.
Easy Integration: Various mounting interfaces allow the system to be quickly integrated with industrial robots or assisted manipulators for automated production lines.
Vision Guidance: An optional 3D vision guidance system enables precise positioning and accurate marking.
Automatic Traceability: Optional 3D laser scanning measurement and OCR recognition systems provide online inspection of marking quality and support traceability.
Warranty and Service: The complete machine is covered by a 12-month warranty, supported by professional technical support and long-term maintenance service.
Technical Specifications
| Power Supply | AC220V ±10%, 50Hz ±2% |
| Power Consumption | <1000W |
| Laser Power | 200W |
| Marking Area | 112mm × 112mm |
| Marking Depth | ≥0.2mm |
| Operating Temperature | 0~40℃ |
| Operating Humidity | ≤90% RH (Non-condensing) |
How to Automate VIN Marking: Step-by-Step Planning
Automating VIN marking is a system integration task, not simply a matter of installing a marking head. The following steps outline the main planning stages for engineers and production managers.
Step 1: Define the Marking Requirement
Start by confirming the material and the required marking depth. For high-strength steel and hot-formed steel body structures, deep marking is required to ensure the VIN remains legible and permanent. The KINMARK deep laser marking system is designed for yield strength above 700 MPa and hot-formed steel up to 1500 MPa, with a marking depth of more than 0.2 mm on body-in-white.
Step 2: Select the Integration Method
Decide whether the marking head will be mounted on an industrial robot, an assisted manipulator, or a dedicated fixture. The system is designed with various mounting interfaces to support quick integration. Robot integration is typically selected when the marking position varies between models or when the station must handle multiple body variants.
Step 3: Plan Positioning and Guidance
Accurate positioning is essential for consistent VIN placement. An optional 3D vision guidance system can be specified to complete precise positioning and accurate marking. This is particularly relevant when body positioning tolerances or model variations could affect the marking location.
Step 4: Add Quality Verification
For traceability-driven production, an optional 3D laser scanning measurement system combined with OCR recognition can be integrated. This provides online inspection of character marking quality and supports 100% traceability of the marking result.
Step 5: Integrate with Production Control
Connect the marking station to the production line control and traceability systems so that each VIN is recorded against the corresponding body. The specific interface and data structure depend on the plant architecture and the customer's requirements.
Step 6: Commission and Validate
After installation, the system is commissioned and validated in the production environment. KINMARK provides installation, commissioning, and operator training to help customers start production smoothly, along with remote diagnosis and technical assistance for ongoing operation.
Applications
Automated deep laser VIN marking is relevant to several areas of automotive manufacturing and industrial automation.
Automotive Manufacturing: Body-in-white VIN marking stations on vehicle assembly lines.
Automotive Components: Marking of components where permanent identification is required.
New Energy Vehicles: VIN marking on body structures used in new energy vehicle production.
Powertrain Manufacturing: Identification and traceability marking in powertrain production environments.
Intelligent Factory Automation: Robot-integrated marking cells connected to plant traceability systems.
The common requirement across these applications is a permanent, verifiable mark that can be produced automatically and recorded digitally.
Benefits of Automated VIN Marking
Improved traceability: With optional 3D scanning and OCR recognition, marking quality can be inspected online and linked to production records.
Better process consistency: Automated positioning and marking reduce variation compared with manual marking operations.
Production integration: The system can be integrated with robots or assisted manipulators and connected to production line control.
Support for high-strength materials: Deep marking is possible on high-strength steel and hot-formed steel used in modern body structures.
Post-paint legibility: The special marking process is designed to ensure clear rubbing results after painting.
Why Choose KINMARK
KINMARK has been engaged in automotive intelligent automation equipment since its establishment in 1996. The company develops and manufactures marking and traceability systems, servo press systems, fluid filling systems, and robot automation systems, serving vehicle manufacturers, powertrain producers, automotive component suppliers, and new energy vehicle manufacturers.
For VIN marking specifically, KINMARK's development path reflects a long-term focus on automotive marking applications, from early engine and body printing equipment to robot automatic marking systems, VIN automatic identification systems, and laser deep marking systems. The VIN laser deep marking system was developed and put into operation in 2023.
Customers working with KINMARK on automated VIN marking gain access to equipment designed for integration, optional vision guidance and traceability modules, installation and commissioning support, operator training, and after-sales service including remote diagnosis and technical assistance.
Frequently Asked Questions
What marking depth can be achieved on body-in-white?
The KINMARK deep laser marking system can achieve a marking depth of more than 0.2 mm on body-in-white. It is designed to mark high-strength steel plates with yield strength exceeding 700 MPa and hot-formed steel plates with strength up to 1500 MPa.
Can the marking system be integrated with industrial robots?
Yes. The system is designed with various mounting interfaces and can be quickly integrated with industrial robots or assisted manipulators for automated production lines.
How is marking quality verified in an automated process?
An optional 3D laser scanning measurement system combined with OCR recognition provides online inspection of character marking quality and supports 100% traceability. An optional 3D vision guidance system can also be specified for precise positioning before marking.
Will the VIN remain legible after painting?
The system adopts a special marking process designed to ensure clear rubbing results after painting, so the VIN remains identifiable following the paint process.
What support is provided after installation?
KINMARK provides installation, commissioning, and operator training, along with a 12-month warranty on the complete machine, professional technical support, long-term maintenance service, and fast-response remote diagnosis and technical assistance.
Conclusion
Automating VIN marking requires more than selecting a marking device. It involves defining the marking requirement for high-strength body materials, choosing the right integration method, planning positioning and quality verification, and connecting the station to production control and traceability systems.
Deep laser marking technology provides a practical foundation for this process, enabling permanent VIN marking on high-strength steel and hot-formed steel with a marking depth of more than 0.2 mm on body-in-white. With optional 3D vision guidance, 3D laser scanning measurement, and OCR recognition, the marking process can be positioned accurately and verified online.
For production managers and engineers planning an automated VIN marking station, the key is to match the marking system to the material, the line layout, and the traceability requirements of the plant. KINMARK's deep laser marking system and integration support provide a starting point for building a reliable, automated VIN marking process.
If you're interested in any of the equipment mentioned in this article, feel free to contact our sales engineers for detailed product information and customized technical solutions.
