Laser Marking Traceability Systems for Smart Factories
Introduction
In modern automotive manufacturing, the ability to permanently mark and trace components throughout the production lifecycle is a fundamental requirement for quality management, regulatory compliance, and smart factory integration. A laser marking traceability system combines deep laser marking technology with automated data capture to create an unbroken chain of identification from body-in-white through final assembly.
This guide examines the technical principles, key features, and industrial applications of laser marking traceability systems, with particular focus on deep VIN marking on high-strength steel and hot-formed steel plates. It is intended for automotive engineers, manufacturing engineers, production managers, and factory decision makers evaluating traceability solutions for smart factory environments.
Product Overview
A laser marking traceability system is an integrated solution that applies permanent markings to automotive components and bodies, then verifies and records those markings for full lifecycle traceability. The KINMARK Deep Laser Marking Machine is a representative system designed specifically for deep VIN marking on high-strength materials used in vehicle body construction.
The system addresses a critical industrial challenge: conventional marking methods often struggle to produce durable, legible markings on advanced high-strength steels and hot-formed steels. These materials, increasingly common in vehicle safety structures, require a marking solution capable of achieving sufficient depth to survive painting, rubbing, and the full vehicle service life.

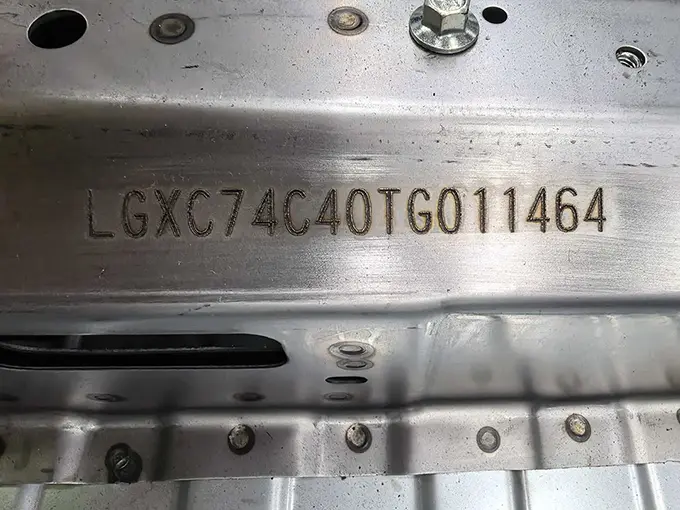

The Deep Laser Marking Machine enables permanent VIN deep marking on steel plates with yield strength exceeding 700 MPa and hot-formed steel plates with strength up to 1500 MPa. On body-in-white, the marking depth can reach more than 0.2 mm. The system is designed for integration into automated production lines, supporting automotive mass production requirements.
Working Principle
The deep laser marking process uses a focused laser beam to remove or alter material at the surface of the workpiece, creating a permanent recessed mark. The KINMARK system employs a 200W laser and a special marking process to ensure clear rubbing results after painting.
For VIN marking on high-strength steel, the laser interacts with the material to achieve a marking depth of 0.2 mm or greater. This depth is sufficient to remain legible after the painting process and to resist wear throughout the vehicle's life. The marking area of 112 mm × 112 mm accommodates standard VIN character sets.
The system can be integrated with industrial robots or assisted manipulators through various mounting interfaces. When equipped with the optional 3D vision guidance system, the marking head can be precisely positioned relative to the workpiece, enabling accurate marking on complex geometries. An optional 3D laser scanning measurement and OCR recognition system provides online inspection of marking quality and supports 100% traceability by verifying each marked character.
Integration Note: The deep laser marking system is designed for automated production lines. Mounting interfaces support quick integration with robots or assisted manipulators, while optional vision and inspection modules enable closed-loop quality control.
Key Features
Deep VIN Marking: Achieves permanent VIN deep marking on high-strength steel plates with yield strength exceeding 700 MPa and hot-formed steel plates up to 1500 MPa. Marking depth on body-in-white exceeds 0.2 mm.
Easy Rubbing: A special marking process ensures clear rubbing results after painting, maintaining legibility for vehicle identification and registration purposes.
Easy Integration: Various mounting interfaces allow quick integration with industrial robots or assisted manipulators for automated production lines.
Vision Guidance: Optional 3D vision guidance system enables precise positioning and accurate marking, improving production efficiency.
Automatic Traceability: Optional 3D laser scanning measurement and OCR recognition systems provide online inspection of marking quality and ensure 100% traceability.
Technical Specifications
| Power Supply | AC220V ±10%, 50Hz ±2% |
| Power Consumption | <1000W |
| Laser Power | 200W |
| Marking Area | 112mm × 112mm |
| Marking Depth | ≥0.2mm |
| Operating Temperature | 0~40℃ |
| Operating Humidity | ≤90% RH (Non-condensing) |
Applications
Laser marking traceability systems are deployed across automotive manufacturing and related industries where permanent identification and traceability are required. The KINMARK Deep Laser Marking Machine is particularly suited to applications involving high-strength and hot-formed steel components.
Automotive Manufacturing
In vehicle assembly, the system marks VINs on body-in-white structures, ensuring that each vehicle carries a permanent, legible identification mark that survives the paint shop and remains readable for the vehicle's lifetime. The ability to mark on high-strength steel supports modern body architectures that use advanced materials for crash safety and weight reduction.
Automotive Components
The system can be applied to mark components where permanent traceability is required. The deep marking capability ensures that marks remain intact through subsequent manufacturing processes, including painting and surface treatment. These applications are part of broader marking machine solutions for automotive manufacturing.
New Energy Vehicles
As new energy vehicle production expands, the need for reliable traceability of structural components and battery-related parts increases. The deep laser marking system supports these requirements by providing durable marks on advanced materials.
Powertrain Manufacturing
Powertrain components often require permanent identification for quality control and warranty tracking. The system's ability to mark deeply on high-strength materials makes it suitable for engine and transmission components.
Intelligent Factory Automation
The system is designed for integration into smart factory environments. With robot integration, vision guidance, and automated inspection options, it supports the data-driven, connected production models that characterize intelligent manufacturing. For broader automated marking applications, integrated marking units can also be incorporated into industrial production systems.
Benefits
Improved Traceability: The optional 3D laser scanning measurement and OCR recognition systems provide online inspection of marking quality and ensure 100% traceability, creating a reliable data record for each marked component.
Process Consistency: The special marking process and precise depth control ensure consistent, legible marks across production runs, supporting quality management systems.
Production Integration: Various mounting interfaces and optional vision guidance enable integration with existing automated production lines, including robot-based marking stations.
Manufacturing Efficiency: Automated marking and inspection reduce manual intervention and support continuous production flow.
Automation Ready: The system is designed for automated production, with features that support lights-out manufacturing and smart factory connectivity.
Quality Management: Online inspection and OCR verification allow immediate detection of marking defects, preventing non-conforming parts from advancing in the production process.
Why Choose KINMARK
KINMARK (Jinan Zhongzheng Jinma Technology Co., Ltd.) has been engaged in the research and manufacturing of marking and traceability systems since 1996. The company is recognized as a Shandong Province "Gazelle" enterprise and a "Specialized and Sophisticated" enterprise, reflecting its focus on specialized industrial technologies.
The company's product portfolio includes marking and traceability systems, servo press systems, fluid filling systems, and robot automation systems. This breadth of capabilities allows KINMARK to support automotive manufacturers with integrated solutions for smart factory automation.
KINMARK has established long-term cooperation with automotive manufacturers and suppliers across the industry. The company maintains offices and service centers in multiple cities, providing local support for installation, commissioning, and maintenance.
The Deep Laser Marking Machine reflects KINMARK's ongoing development in laser marking technology, including the introduction of deep VIN marking systems and robot-based automatic marking solutions. The system is backed by a 12-month warranty, fast response service, and installation and commissioning support.
Frequently Asked Questions
What materials can the deep laser marking system mark?
The system is designed to mark high-strength steel plates with yield strength exceeding 700 MPa and hot-formed steel plates with strength up to 1500 MPa. It achieves a marking depth of more than 0.2 mm on body-in-white.
How does the system support traceability?
The optional 3D laser scanning measurement and OCR recognition systems provide online inspection of marking quality. This enables 100% traceability by verifying each marked character and recording the inspection results.
Can the marking system be integrated with robots?
Yes. The system is designed with various mounting interfaces that allow quick integration with industrial robots or assisted manipulators for automated production lines. An optional 3D vision guidance system further supports precise positioning.
What are the power requirements for the deep laser marking machine?
The system operates on AC220V ±10%, 50Hz ±2%, with power consumption below 1000W. The laser power is 200W.
What support does KINMARK provide for installation and maintenance?
KINMARK provides equipment installation, commissioning, and operator training. The complete machine is covered by a 12-month warranty, with professional technical support, remote diagnosis, and long-term maintenance service.
Conclusion
Laser marking traceability systems play a vital role in smart factories by providing permanent, verifiable identification for automotive components and bodies. The KINMARK Deep Laser Marking Machine addresses the specific challenges of marking high-strength and hot-formed steels, achieving deep VIN marks that survive painting and remain legible throughout the vehicle's life.
With features such as easy integration, optional vision guidance, and automatic traceability, the system supports the connected, data-driven production models that define intelligent factory automation. For automotive engineers and production managers evaluating traceability solutions, the deep laser marking system offers a technically robust approach to meeting identification and quality management requirements.
