VIN Laser Marking Machine for Automotive Manufacturing
Introduction
A VIN laser marking machine is a specialized industrial system used to permanently mark Vehicle Identification Numbers on automotive bodies and components. In automotive manufacturing, the VIN is a unique identifier that must remain legible throughout the life of the vehicle. Traditional marking methods can struggle with high-strength steel and hot-formed steel, where surface hardness and material behavior make deep, durable marks difficult to achieve.
This article explains how deep laser marking technology addresses VIN marking on demanding materials such as steel with yield strength exceeding 700 MPa and hot-formed steel up to 1500 MPa. It covers the working principle, key features, applications, benefits, and selection considerations for engineers and production managers evaluating a VIN laser marking machine for automotive manufacturing lines.
Product Overview
The KINMARK Deep Laser Marking Machine is a marking and traceability system designed for deep VIN marking on high-strength materials. It is positioned for automotive mass production environments where permanent identification and reliable traceability are required. The system supports body-in-white marking with a marking depth greater than 0.2 mm.
The machine is built for integration into automated production lines. It can be combined with industrial robots or assisted manipulators, and optional vision and inspection modules are available to support positioning and quality verification. The complete machine is covered by a 12-month warranty, with installation, commissioning, and operator training provided by KINMARK engineers.
Working Principle
Deep laser marking uses a focused laser beam to remove or alter material at the surface of the workpiece, creating a permanent mark with measurable depth. In VIN marking, the goal is not only visual contrast but also a durable indentation that remains readable after downstream processes such as painting.
The KINMARK system uses a 200W laser and a marking area of 112 mm × 112 mm. It is designed to mark high-strength steel plates and hot-formed steel plates, achieving a marking depth of 0.2 mm or more on body-in-white. A special marking process supports clear rubbing results after painting, which is important for VIN verification and traceability.
For automated lines, the marking head can be integrated with robots or assisted manipulators through different mounting interfaces. Optional 3D vision guidance supports precise positioning before marking, and optional 3D laser scanning measurement with OCR recognition enables online inspection of marking quality.
Key Features

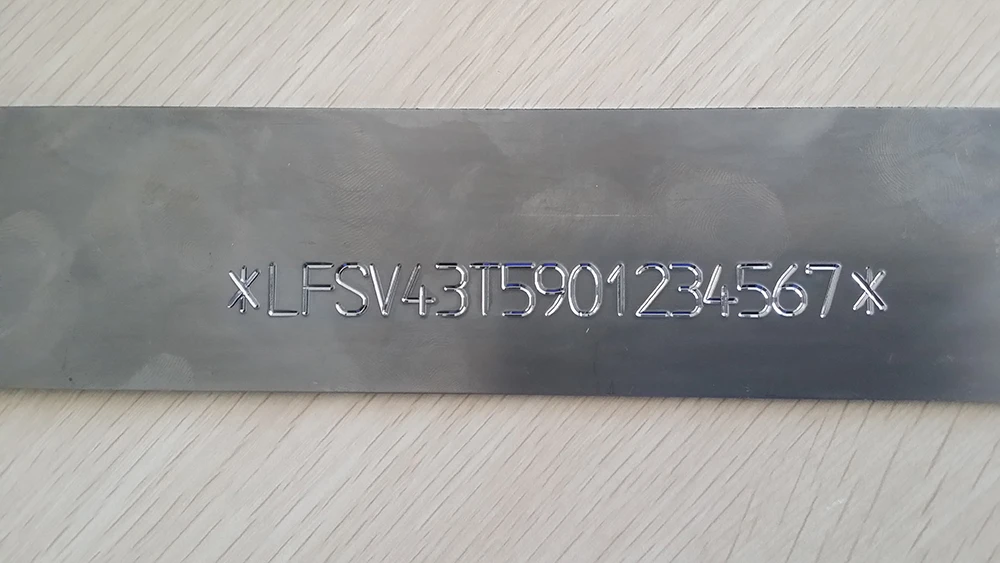

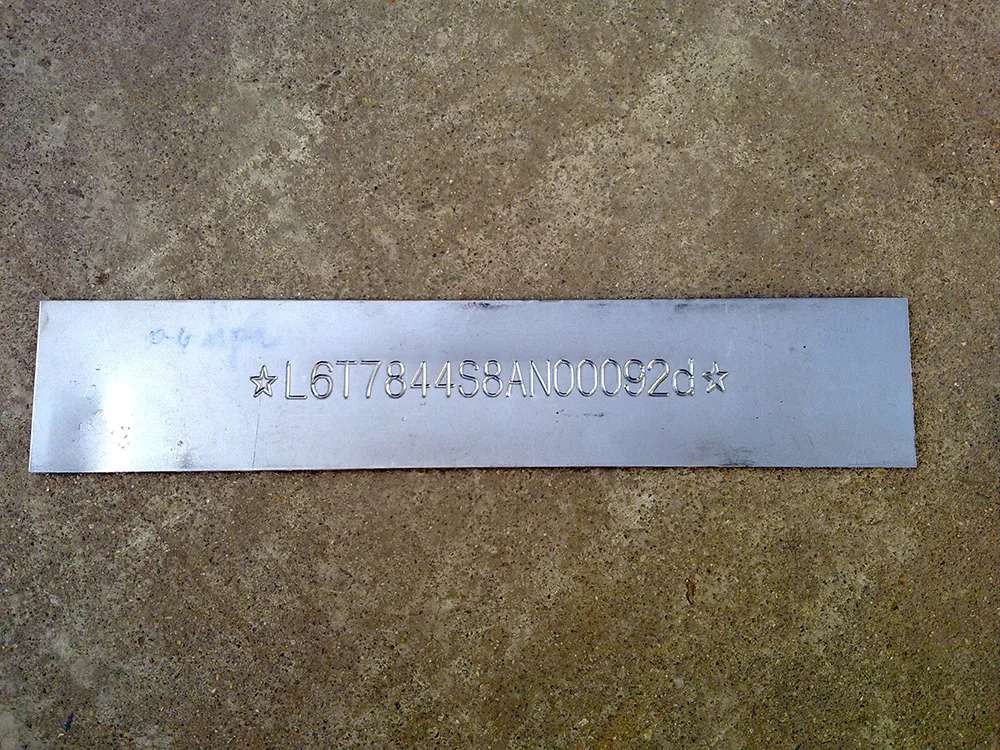

Deep VIN marking: Enables permanent VIN deep marking on high-strength steel plates with yield strength exceeding 700 MPa and hot-formed steel plates with strength up to 1500 MPa. Marking depth on body-in-white can reach more than 0.2 mm.
Easy rubbing: Adopts a special marking process to ensure clear rubbing results after painting.
Easy integration: Designed with various mounting interfaces for quick integration with industrial robots or assisted manipulators in automated production lines.
Vision guidance (optional): Optional 3D vision guidance system enables precise positioning and accurate marking to improve production efficiency.
Automatic traceability (optional): Optional 3D laser scanning measurement and OCR recognition systems provide online inspection of marking quality and support 100% traceability.
Production-ready design: Supports automotive mass production requirements and intelligent traceability integration.
Technical Specifications
| Power Supply | AC220V ±10%, 50Hz ±2% |
| Power Consumption | <1000W |
| Laser Power | 200W |
| Marking Area | 112mm × 112mm |
| Marking Depth | ≥0.2mm |
| Operating Temperature | 0~40℃ |
| Operating Humidity | ≤90% RH (Non-condensing) |
Applications
The VIN laser marking machine is used in automotive manufacturing environments where permanent identification is required. Based on the product information, typical applications include:
Body-in-white VIN marking: Deep marking on high-strength steel and hot-formed steel body structures.
Automotive mass production lines: Integration into automated lines with robot or manipulator handling.
Traceability systems: Combined with optional inspection modules for online marking quality verification and OCR recognition.
New energy vehicle manufacturing: Suitable for automotive manufacturers requiring durable VIN marking on advanced body materials.
Powertrain and component manufacturing: Where permanent marking and traceability are part of production quality control.
Benefits
A deep laser marking system for VIN applications offers several practical benefits in automotive production:
Permanent identification: Deep marks remain readable after painting and downstream processes.
Material capability: Supports high-strength steel and hot-formed steel that are difficult for conventional marking methods.
Process consistency: Automated marking with optional vision guidance supports repeatable positioning and marking.
Traceability support: Optional 3D scanning and OCR enable online inspection and support 100% traceability.
Production integration: Mounting interfaces and robot compatibility allow integration into existing automated lines.
Service support: 12-month warranty, installation and commissioning, and operator training are provided.
Why Choose KINMARK
KINMARK (Jinan Zhongzheng Jinma Technology Co., Ltd.) has been engaged in marking and traceability systems, servo press systems, fluid filling systems, and robot automation systems since 1996. The company is a Shandong Province "Gazelle" enterprise and a "Specialized and Innovative" enterprise. It has established long-term cooperation with automotive manufacturers and suppliers in China and internationally.
In the marking and traceability field, KINMARK has developed VIN marking systems, laser deep marking systems, and robot automatic marking systems. The Deep Laser Marking Machine reflects this experience, with a design focused on deep VIN marking on high-strength materials and integration into automated production lines. KINMARK provides service offices and maintenance centers in cities including Shanghai, Beijing, Guangzhou, Changchun, Wuhan, and Chongqing.
Frequently Asked Questions
What materials can the VIN laser marking machine mark?
The system enables permanent VIN deep marking on high-strength steel plates with yield strength exceeding 700 MPa and hot-formed steel plates with strength up to 1500 MPa.
What is the marking depth on body-in-white?
The marking depth on body-in-white can reach more than 0.2 mm.
Can the machine be integrated with robots?
Yes. The system is designed with various mounting interfaces and can be quickly integrated with industrial robots or assisted manipulators for automated production lines.
Does the system support traceability and quality inspection?
Optional 3D laser scanning measurement and OCR recognition systems provide online inspection of marking quality and support 100% traceability. An optional 3D vision guidance system is also available for precise positioning.
What support is included with the machine?
The complete machine is covered by a 12-month warranty. KINMARK provides installation, commissioning, operator training, after-sales support, and remote diagnosis.
Conclusion
VIN laser marking is a critical process in automotive manufacturing, especially when high-strength and hot-formed steels are used. The KINMARK Deep Laser Marking Machine is designed to deliver deep VIN marking with a depth of more than 0.2 mm on body-in-white, support integration with robots and assisted manipulators, and enable optional vision guidance and traceability inspection. For production and manufacturing engineers evaluating a VIN laser marking machine, the system offers a practical combination of material capability, automation integration, and traceability support for modern automotive lines.
If you're interested in any of the equipment mentioned in this article, feel free to contact our sales engineers for detailed product information and customized technical solutions.
