Automatic VIN Marking Machine for Smart Automotive Manufacturing
Introduction
In automotive manufacturing, the Vehicle Identification Number (VIN) is more than a regulatory requirement—it is the backbone of traceability, quality control, and anti-counterfeiting. As body-in-white (BIW) structures increasingly use high-strength and hot-formed steels, traditional marking methods struggle to achieve the depth and durability needed for lifelong identification. An automatic VIN marking machine addresses this challenge by combining high-power laser technology with automated handling and intelligent vision systems. This article explains how such systems work, their key features, and why they are essential for smart manufacturing environments.
Product Overview
The KINMARK Deep Laser Marking Machine is an automatic VIN marking solution designed for high-strength steel plates with yield strength exceeding 700 MPa and hot-formed steel plates up to 1500 MPa. It achieves a marking depth of more than 0.2 mm on body-in-white, ensuring permanent, legible VINs that withstand painting and rubbing processes. The system supports integration with industrial robots or assisted manipulators, making it suitable for automated production lines in automotive manufacturing.
Key Specifications
| Parameter | Value |
|---|---|
| Power Supply | AC220V ±10%, 50Hz ±2% |
| Power Consumption | <1000W |
| Laser Power | 200W |
| Marking Area | 112mm × 112mm |
| Marking Depth | ≥0.2mm |
| Operating Temperature | 0~40℃ |
| Operating Humidity | ≤90% RH (Non-condensing) |
Working Principle

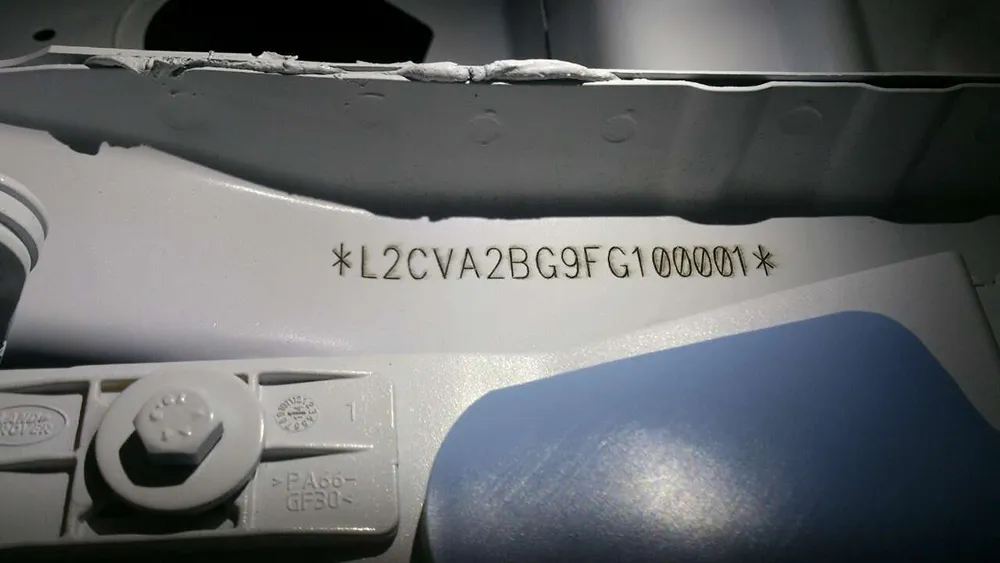

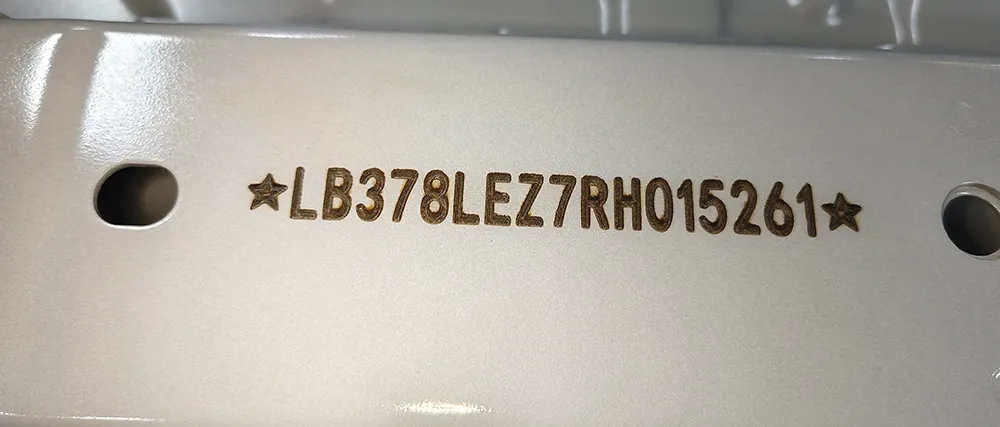

The automatic VIN marking machine uses a 200W laser to create deep, permanent marks on high-strength steel. The focused laser beam melts and vaporizes the material surface, forming a recessed VIN with a depth greater than 0.2 mm. This depth ensures that the VIN remains readable even after painting and rubbing. The system can be equipped with an optional 3D vision guidance system for precise positioning, enabling accurate marking on complex geometries. Additionally, an optional 3D laser scanning measurement and OCR recognition system provides online inspection of marking quality, ensuring 100% traceability.
Key Features
Deep VIN Marking: Achieves marking depth ≥0.2mm on high-strength steel (yield strength >700 MPa) and hot-formed steel (up to 1500 MPa).
Easy Rubbing: Special marking process ensures clear rubbing results after painting.
Easy Integration: Various mounting interfaces allow quick integration with industrial robots or assisted manipulators.
Vision Guidance: Optional 3D vision system for precise positioning and accurate marking.
Automatic Traceability: Optional 3D laser scanning and OCR recognition for online quality inspection and 100% traceability.
Applications
This automatic VIN marking machine is primarily used in automotive manufacturing, particularly for marking VINs on body-in-white. It is suitable for:
Automotive manufacturing lines requiring permanent VIN marking on high-strength steel.
New energy vehicle (NEV) production where lightweight, high-strength materials are common.
Powertrain manufacturing for component traceability.
Intelligent factory automation environments where robot integration and automated inspection are essential.
Benefits
Improved Traceability: Optional OCR and 3D scanning ensure every VIN is readable and traceable, supporting quality management and regulatory compliance.
Process Consistency: Automated marking with vision guidance reduces human error and ensures uniform depth and legibility.
Production Integration: Designed for easy integration with robots and manipulators, facilitating seamless automation.
Manufacturing Efficiency: Fast marking cycles and optional online inspection help maintain production throughput.
Quality Management: Deep, permanent marks that survive painting and rubbing support long-term identification.
Why Choose KINMARK
KINMARK (Jinan Zhongzheng Jinma Technology Co., Ltd.) has been a developer and manufacturer of marking and traceability systems since 1996. The company is recognized as a "Gazelle" and "Specialized and Sophisticated" enterprise in Shandong Province. With a focus on automotive intelligent automation equipment, KINMARK has established long-term cooperation with major automotive manufacturers such as Mercedes-Benz, BMW, Toyota, Volkswagen, Tesla, GM, Nissan, FAW Hongqi, GAC, Changan Automobile, BYD, Great Wall, Geely, Chery, XPeng, and NIO. In addition to the automotive sector, KINMARK provides automation solutions to world-renowned companies like Bosch, BorgWarner, Gree, CRRC, Meritor, and AGCO. The company's deep laser marking system is a testament to its commitment to innovation, with the VIN laser deep marking system successfully developed and put into operation in 2023.
Frequently Asked Questions
1. What materials can the automatic VIN marking machine handle?
The system is designed for high-strength steel plates with yield strength exceeding 700 MPa and hot-formed steel plates with strength up to 1500 MPa. It achieves a marking depth of more than 0.2 mm on body-in-white.
2. Can the machine be integrated into an existing production line?
Yes. The machine features various mounting interfaces and is designed for quick integration with industrial robots or assisted manipulators, making it suitable for automated production lines.
3. Does the system provide traceability?
Yes. An optional 3D laser scanning measurement and OCR recognition system enables online inspection of marking quality and ensures 100% traceability.
4. What is the marking depth and why is it important?
The marking depth is ≥0.2 mm. This depth ensures the VIN remains legible after painting and rubbing, which is critical for vehicle identification and anti-counterfeiting.
5. What are the power requirements?
The system operates on AC220V ±10%, 50Hz ±2%, with power consumption less than 1000W.
Conclusion
Automatic VIN marking machines are essential for modern automotive manufacturing, especially as high-strength steels become more prevalent. The KINMARK Deep Laser Marking Machine delivers deep, permanent marks with optional vision guidance and traceability features, supporting smart manufacturing initiatives. With a proven track record in the automotive industry, KINMARK provides reliable solutions for VIN marking and traceability.
If you're interested in any of the equipment mentioned in this article, feel free to contact our sales engineers for detailed product information and customized technical solutions.
