Refrigerant Charging Machine: Functions, Applications, and Benefits
Introduction
In automotive manufacturing, the precise filling of fluids such as coolant and antifreeze is a critical process that directly impacts vehicle performance, reliability, and safety. A refrigerant charging machine, also known as a coolant filling machine or antifreeze vacuum filling machine, is a specialized piece of equipment designed to automate this process with high accuracy and repeatability. These machines are essential in assembly lines where consistent liquid levels and leak-free systems are mandatory. This article explores the functions and applications of refrigerant charging machines, focusing on their role in modern automotive production, key features, and the benefits they bring to manufacturers.
Product Overview

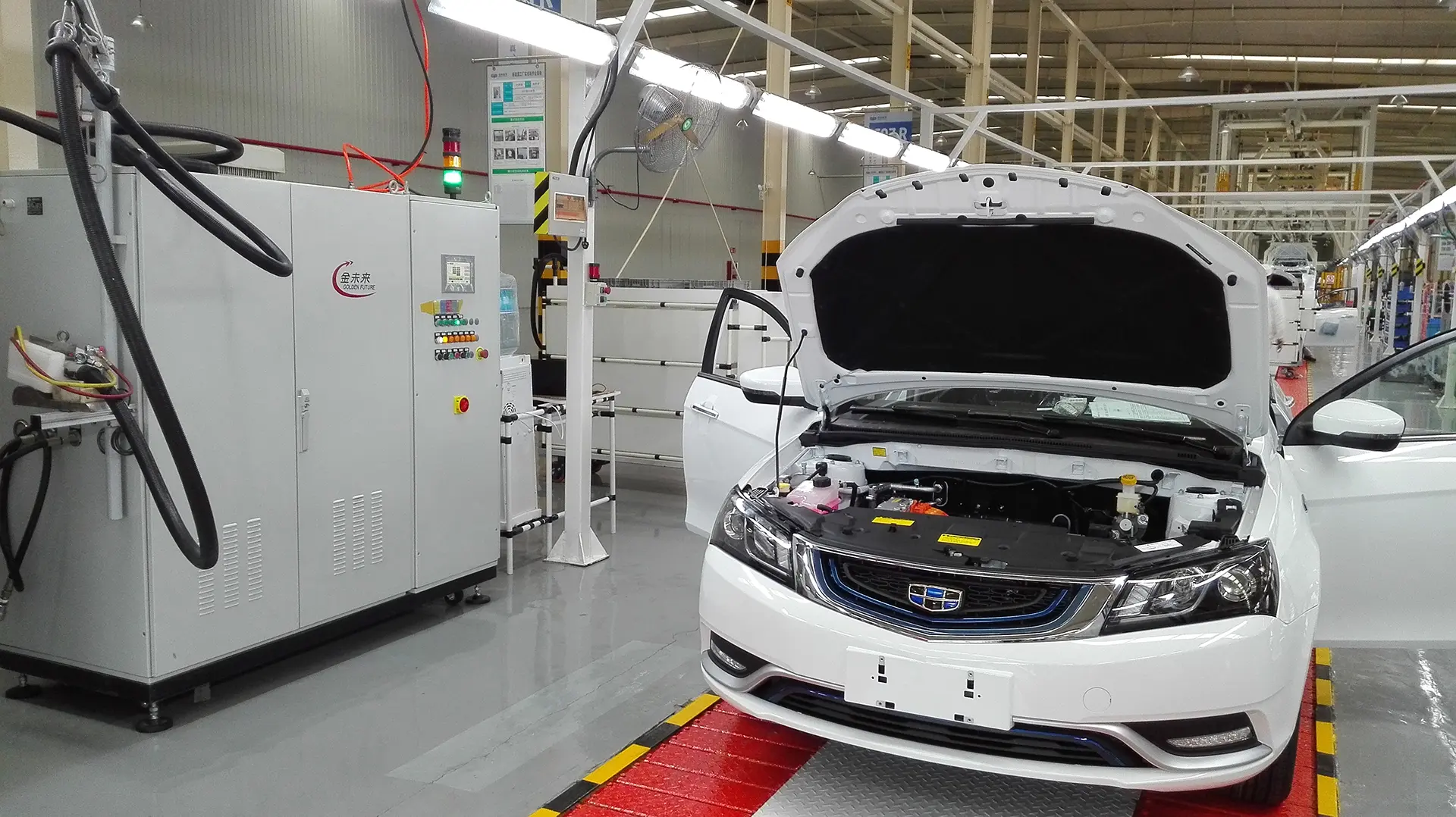

The Antifreeze Vacuum Filling Machine is a PLC-controlled system engineered for automated coolant and antifreeze filling in automotive production and assembly lines. It integrates vacuum evacuation, leak testing, pressure filling, and back suction into a single cycle, ensuring precise filling with a stable liquid level. This machine is suitable for a wide range of vehicles, including passenger cars, commercial vehicles, and new energy vehicles, where coolant systems require exact volumes and no post-fill level drops. By automating the filling process, it reduces manual intervention, minimizes errors, and enhances overall production efficiency.
Working Principle
The refrigerant charging machine operates through a sequence of controlled steps to achieve accurate and reliable filling. First, the system performs vacuum evacuation to remove air and moisture from the cooling system. This is followed by leak testing under both vacuum and pressure conditions to verify system integrity. Once tightness is confirmed, a secondary vacuum is created before coolant is introduced under controlled pressure. When the filling pressure reaches equilibrium, the system automatically vents to atmospheric pressure and performs back suction to remove excess coolant. This back suction step ensures the specified liquid level is achieved and prevents the coolant level from dropping after filling, which is a common issue in manual or less sophisticated filling methods.
Key Features
PLC-Controlled Automation: The entire filling cycle is managed by a PLC, ensuring repeatable and precise operation.
Integrated Vacuum and Leak Testing: Combines vacuum evacuation, negative pressure leak testing, and positive pressure leak testing in one cycle.
Precise Filling: Achieves filling precision of ±0.5% and liquid level accuracy of ±2 mm.
Wide Filling Volume Range: Capable of filling volumes from 1 to 400 liters, accommodating various vehicle types.
Stable Liquid Level: Back suction function removes excess coolant to maintain the exact required level.
Robust Construction: Equipment dimensions of 1800 × 1000 × 800 mm (customizable) and power supply of AC 380 V ±10%, 50 Hz ±2%.
Comprehensive Warranty and Support: 12-month warranty with professional technical support, remote diagnosis, and on-site installation and commissioning.
Applications
The refrigerant charging machine is primarily used in automotive manufacturing and assembly lines for filling coolant and antifreeze into vehicle cooling systems. Its applications span various sectors:
Automotive Manufacturing: Used in final assembly lines for passenger cars, trucks, and buses to ensure accurate coolant filling.
Automotive Components: Suitable for filling cooling systems in engines, radiators, and HVAC modules before installation.
New Energy Vehicles: Essential for battery thermal management systems and electric drive cooling circuits, where precise coolant levels are critical. The machine can also support applications related to new energy vehicle cooling systems.
Powertrain Manufacturing: Applied in engine and transmission assembly for coolant filling and leak testing.
Intelligent Factory Automation: Integrates with automated production lines and robotic systems for seamless fluid filling operations.
The machine's ability to handle filling volumes up to 400 liters and its precise leak testing make it versatile for both small and large cooling systems.
Benefits
Implementing an automated refrigerant charging machine offers several industrial benefits:
Improved Traceability: PLC control and measurement display range of 0.0–999.9 L allow for accurate recording of filling data.
Better Process Consistency: Automated cycles eliminate human error, ensuring every vehicle receives the correct coolant volume and level.
Production Integration: The machine can be integrated into existing assembly lines, enhancing workflow and reducing cycle times.
Manufacturing Efficiency: Fast filling speed of up to 60 L/min and automated leak testing reduce downtime and increase throughput.
Quality Management: Leak testing under vacuum and pressure conditions (negative pressure leak rate ≤0.5 mbar/60 s, positive pressure leakage<1.4 g/year) helps identify defects early, preventing costly recalls.
Automation: Reduces manual labor and allows operators to focus on other tasks, improving overall plant safety and productivity.
Why Choose KINMARK
KINMARK, a brand of Jinan Zhongzheng Jinma Technology Co., Ltd., has been a manufacturer of marking and traceability systems, fluid filling systems, servo press systems, and robot automation systems since 1996. With a strong focus on automotive intelligent automation, KINMARK has established long-term partnerships with leading automotive manufacturers such as Mercedes-Benz, BMW, Toyota, Volkswagen, Tesla, GM, Nissan, FAW Hongqi, GAC, Changan Automobile, BYD, Great Wall, Geely, Chery, XPeng, and NIO. The company also provides automation solutions to world-renowned enterprises like Bosch, BorgWarner, Gree, CRRC, Meritor, and AGCO. KINMARK's Antifreeze Vacuum Filling Machine reflects the company's commitment to precision, reliability, and innovation in fluid filling technology. With a 12-month warranty, fast response service, and comprehensive installation and commissioning support, KINMARK ensures customers achieve smooth production start-up and continuous operation.
Frequently Asked Questions
What is the filling volume range of the Antifreeze Vacuum Filling Machine?
The machine can fill volumes from 1 to 400 liters, making it suitable for a wide range of automotive cooling systems.
How does the machine ensure a stable liquid level after filling?
After filling, the system automatically vents to atmospheric pressure and performs back suction to remove excess coolant, achieving the specified liquid level and preventing post-fill level drops.
What types of leak testing are integrated into the filling cycle?
The machine performs both negative pressure leak testing (≤0.5 mbar/60 s) and positive pressure leak testing (<1.4 g/year) to verify system tightness before filling.
Can the machine be customized for different production lines?
Yes, the equipment dimensions are customizable, and the PLC-controlled system can be integrated into various automated assembly lines.
What support does KINMARK provide after purchase?
KINMARK offers a 12-month warranty, professional technical support, remote diagnosis, and on-site installation, commissioning, and operator training.
Conclusion
The refrigerant charging machine, specifically the Antifreeze Vacuum Filling Machine, plays a vital role in automotive manufacturing by automating coolant filling with precision and reliability. Its integrated vacuum evacuation, leak testing, pressure filling, and back suction functions ensure stable liquid levels and leak-free systems, which are essential for vehicle performance and longevity. With applications across automotive manufacturing, components, new energy vehicles, powertrain manufacturing, and intelligent factory automation, this machine offers significant benefits in traceability, process consistency, and production efficiency. KINMARK's extensive experience and partnerships with leading automotive manufacturers underscore its capability to deliver robust fluid filling solutions. As the industry moves toward greater automation and quality assurance, refrigerant charging machines will remain indispensable in modern assembly lines.
If you're interested in any of the equipment mentioned in this article, feel free to contact our sales engineers for detailed product information and customized technical solutions.
