Automotive AC Refrigerant Filling Machine: What It Does and How It Works
Introduction
An automotive AC refrigerant filling machine is production equipment used to introduce refrigerant or coolant into a sealed system under controlled conditions. On vehicle assembly lines, filling must be repeatable: the correct volume has to enter the system, the circuit has to hold pressure, and the final liquid level has to remain stable after the vehicle leaves the station. Manual filling methods struggle to meet all three requirements at the same time, which is why automated vacuum filling equipment is widely used in automotive manufacturing.
The challenge is not simply moving liquid from a tank into a vehicle. Air and moisture trapped inside the circuit can affect system behavior, an undetected leak can cause a vehicle to fail later in the process, and an unstable liquid level can lead to rework. A vacuum-based filling machine addresses these issues by combining evacuation, leak testing, pressure filling, and back suction in one automated cycle.
This article explains what an automotive AC refrigerant filling machine does, how the filling cycle works, which technical specifications matter, and where this type of equipment fits into automotive production and assembly lines.
Product Overview

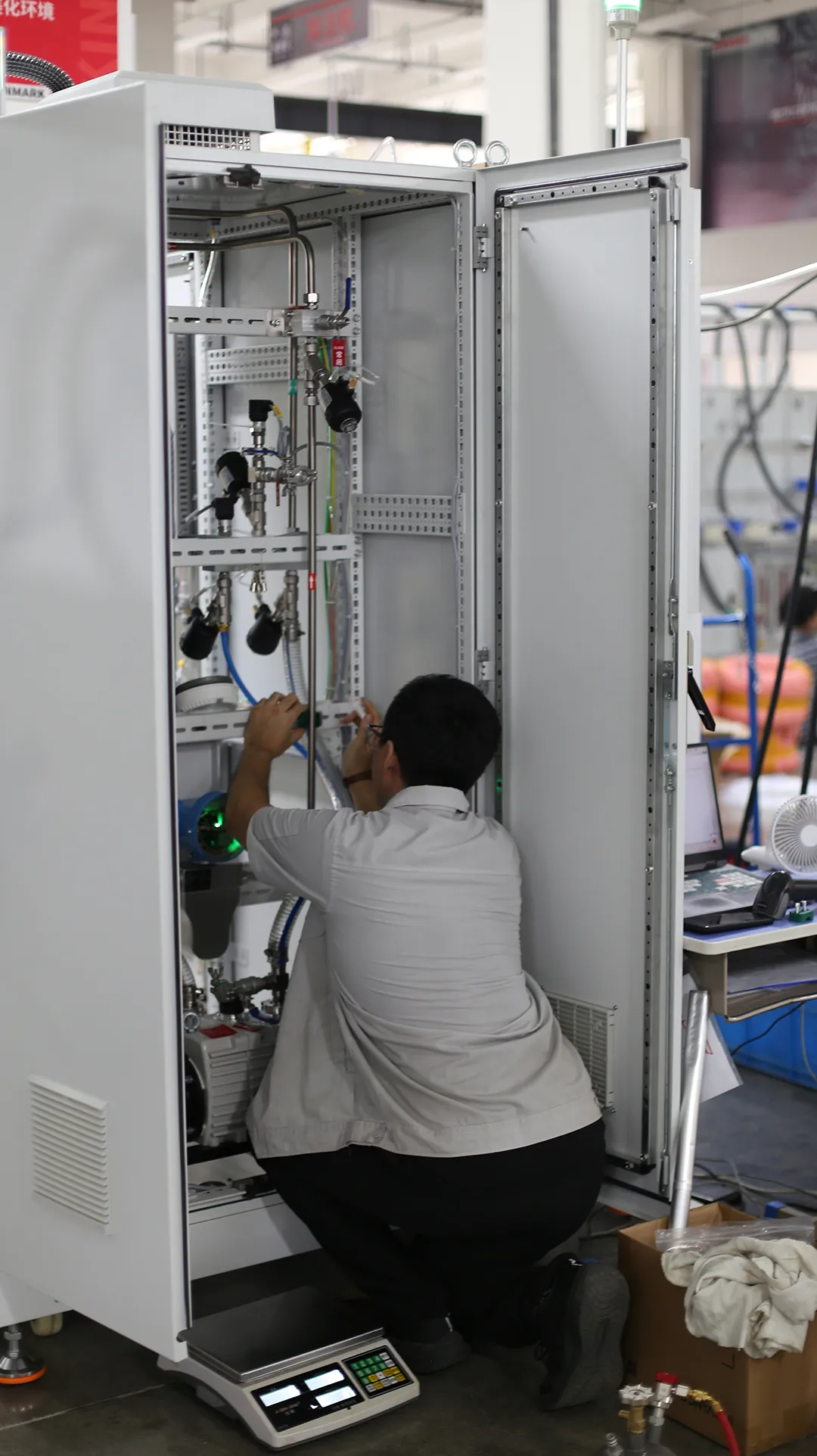

The Antifreeze Vacuum Filling Machine is a PLC-controlled system designed for automated coolant and antifreeze filling. It performs the complete filling process without manual intervention: vacuum evacuation, leak testing under vacuum and pressure conditions, a secondary vacuum, pressure filling, venting to atmospheric pressure, and back suction to reach the specified liquid level.
The machine is intended for filling media such as antifreeze and coolant, and it is built for automated coolant and antifreeze filling applications on automotive production and assembly lines. Its filling volume range of 1–400 L and filling pressure range of 1–4 bar allow it to serve different circuit sizes and filling requirements within that scope.
In practical terms, the equipment solves three production problems. First, it removes air and creates the vacuum conditions needed before liquid is introduced. Second, it verifies circuit tightness through leak testing rather than relying on a visual check. Third, it controls the filling and back suction process so that the liquid level is stable and does not drop after filling.
Working Principle
The filling cycle follows a defined sequence controlled by the PLC system.
Step 1: Vacuum Evacuation
The system first performs vacuum evacuation to remove air from the circuit. This step prepares the system for leak testing and for the introduction of coolant under controlled conditions.
Step 2: Leak Testing
After evacuation, the machine performs leak testing under vacuum and pressure conditions. The negative pressure leak rate is specified as ≤0.5 mbar / 60 s, and positive pressure leakage is specified as<1.4 g/year. These checks confirm system tightness before filling proceeds.
Step 3: Secondary Vacuum
Once tightness is confirmed, a secondary vacuum is created. This prepares the circuit for the coolant to be introduced under controlled pressure.
Step 4: Pressure Filling
Coolant is then introduced under controlled pressure within the 1–4 bar range. The maximum filling speed is 60 L/min, and filling precision is ±0.5%.
Step 5: Venting and Back Suction
When the filling pressure reaches equilibrium, the system automatically vents to atmospheric pressure and performs back suction to remove excess coolant. This helps achieve the specified liquid level and prevents the coolant level from dropping after filling. Liquid level accuracy is specified as ±2 mm.
Key Features
PLC-controlled automated cycle — the complete filling process, from vacuum evacuation through back suction, is automated.
Integrated leak testing — leak testing is performed under vacuum and pressure conditions before filling.
Stable liquid level — back suction after pressure equilibrium helps achieve the specified liquid level and prevents the level from dropping after filling.
Defined filling parameters — filling volume of 1–400 L, filling pressure of 1–4 bar, maximum filling speed of 60 L/min, and filling precision of ±0.5%.
Liquid level accuracy of ±2 mm — supports consistent filling results across production cycles.
Measurement display range of 0.0–999.9 L — provides a clear readout of filling volume.
Vacuum pump capacity of 40–65 m³/h — supports the evacuation steps in the cycle.
Customizable equipment dimensions — standard dimensions are 1800 × 1000 × 800 mm and can be customized.
Technical Specifications
| Parameter | Specification |
|---|---|
| Filling Medium | Antifreeze / Coolant |
| Filling Volume | 1–400 L |
| Filling Pressure | 1–4 bar |
| Maximum Filling Speed | 60 L/min |
| Filling Precision | ±0.5% |
| Liquid Level Accuracy | ±2 mm |
| Measurement Display Range | 0.0–999.9 L |
| Vacuum Pump Capacity | 40–65 m³/h |
| Negative Pressure Leak Rate | ≤0.5 mbar / 60 s |
| Positive Pressure Leakage | <1.4 g/year |
| Power Supply | AC 380 V ±10%, 50 Hz ±2% |
| Equipment Dimensions | 1800 × 1000 × 800 mm (customizable) |
Applications
The Antifreeze Vacuum Filling Machine is suitable for automated coolant and antifreeze filling applications on automotive production and assembly lines. Typical areas where this type of equipment is used include:
Automotive manufacturing and vehicle assembly
Automotive component production
Powertrain manufacturing
Intelligent factory automation environments
Because the cycle combines vacuum evacuation, leak testing, pressure filling, and back suction, the machine fits stations where both filling accuracy and circuit tightness need to be confirmed as part of the production process.
Benefits
Consistent filling results — automated control of pressure, volume, and liquid level reduces variation between cycles.
Leak detection before filling — testing under vacuum and pressure conditions confirms system tightness before coolant is introduced.
Stable liquid level after filling — back suction helps achieve the specified level and prevents the level from dropping.
Process integration — evacuation, testing, filling, and back suction are combined in a single automated cycle.
Production line compatibility — the machine is designed for automated filling on automotive production and assembly lines.
Service support — the complete machine is covered by a 12-month warranty, with remote diagnosis, technical assistance, installation, commissioning, and operator training available.
Why Choose
KINMARK is a manufacturer of marking and traceability systems, servo press systems, fluid filling systems, and robot automation systems. The company has worked with automotive manufacturers and suppliers across vehicle assembly, powertrain, and component production, and supplies automation solutions for industries including new energy vehicles and intelligent factory automation.
For coolant and antifreeze filling stations, the value of this equipment lies in its defined process: vacuum evacuation, leak testing, secondary vacuum, pressure filling, venting, and back suction are handled in one PLC-controlled cycle. The machine's specifications — including filling volume, filling pressure, filling precision, liquid level accuracy, and leak rate limits — give production and process engineers measurable parameters to work with when planning a filling station.
KINMARK also provides installation and commissioning support, operator training, a 12-month warranty on the complete machine, and remote diagnosis and technical assistance to support continuous operation.
Frequently Asked Questions
What does an automotive AC refrigerant filling machine do?
It automates the filling process for refrigerant or coolant in a sealed circuit. The Antifreeze Vacuum Filling Machine performs vacuum evacuation, leak testing under vacuum and pressure conditions, a secondary vacuum, pressure filling, venting to atmospheric pressure, and back suction to achieve the specified liquid level.
What filling media can this machine handle?
The machine is designed for antifreeze and coolant as the filling medium.
What are the filling volume and pressure ranges?
The filling volume range is 1–400 L, and the filling pressure range is 1–4 bar. Maximum filling speed is 60 L/min, and filling precision is ±0.5%.
How is leak testing performed?
Leak testing is carried out under vacuum and pressure conditions. The negative pressure leak rate is specified as ≤0.5 mbar / 60 s, and positive pressure leakage is specified as<1.4 g/year. Filling proceeds after system tightness is confirmed.
Why does the machine perform back suction after filling?
After the filling pressure reaches equilibrium, the system vents to atmospheric pressure and performs back suction to remove excess coolant. This helps achieve the specified liquid level and prevents the coolant level from dropping after filling.
Conclusion
An automotive AC refrigerant filling machine combines evacuation, leak testing, pressure filling, and back suction into a single automated cycle. For automotive production and assembly lines, this means coolant and antifreeze filling can be carried out with defined parameters: 1–400 L filling volume, 1–4 bar filling pressure, 60 L/min maximum filling speed, ±0.5% filling precision, and ±2 mm liquid level accuracy. Leak testing under vacuum and pressure conditions confirms circuit tightness before filling, and back suction helps keep the liquid level stable after the vehicle leaves the station.
For engineers and production managers planning a filling station, the key questions are whether the equipment's process sequence matches the circuit being filled, whether the specified precision and leak rate limits meet production requirements, and whether the machine can be integrated into the existing assembly line. The Antifreeze Vacuum Filling Machine addresses these points through a PLC-controlled cycle designed specifically for automated coolant and antifreeze filling.
If you're interested in any of the equipment mentioned in this article, feel free to contact our sales engineers for detailed product information and customized technical solutions.
